GoDecor 26" 28" 50cc 2-Stroke Bike Gasoline Motorized Gas Engine Bike Motor Complete Kit Black

Tips:

Before install the engine, please lubricate the inner components first and you should pour some lubricating oil into the cylinder bore from the spark plug hole, then drain off the lubricating oil and install the engine. Please keep in mind that the motor    will use a mix of gasoline and oil. The oil is used as a lubricant. Without it, the performance andlongevity of the motor will be reduced.

Specifications:

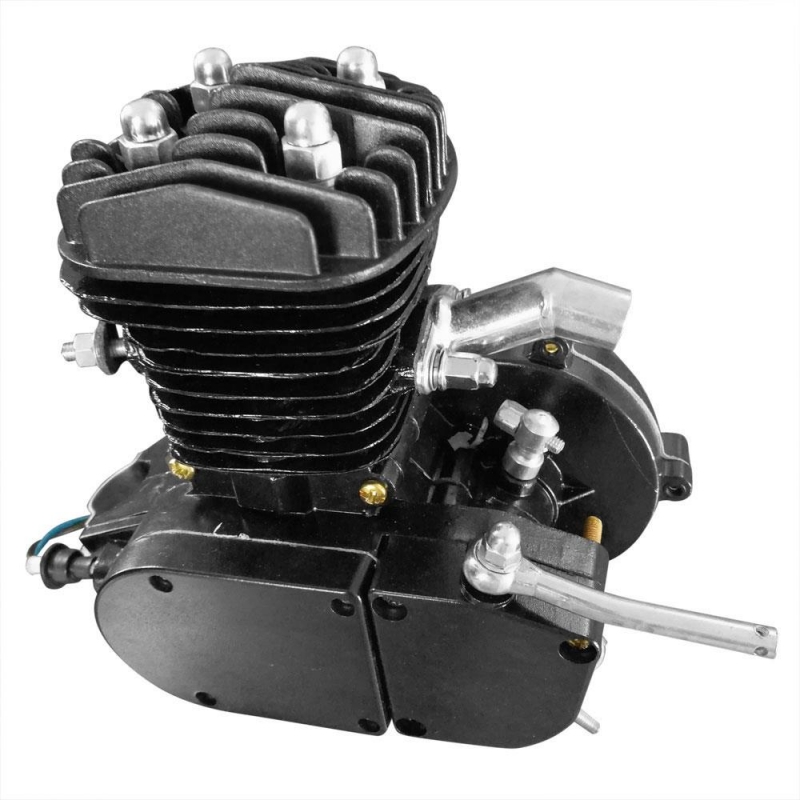

1. Engine Mode: Single Cylinder, Air-cooling, 2-stroke

2. Bore & Stroke: 40mm x 38mm=48 cm3

3. Rated Power: 1.15Kw/5000r/min (1.6 horsepower/5000r/min)

4. Max. Power: 1.6Kw/6000r/min (3 horsepower/6000r/min)

5. Ignition Mode: CDI

6. Compression Ratio: 6:01

7. Driving Ratio: 18:01

8. Fuel Type: No.90

9. Type of Sparking Plug: Z4C 14MM

10. Volume of Oil Consumption: 1.5L/100km

11. Type of Clutch: Friction Plate / Dry

12. Cooling Mode: Natural Air Cooling

13. Speed Limitation: 30km/hour

14. Lubrication Oil: Oil for 2-stroke Petrol Engine (or Oil for 10W/40.10W/30)

15. Mixing Ratio of Fuel and Engine Oil: 16:1 for new sets, 20: 1 after Running 500km

16. Net Weight: 22.05 lbs / 10 kg

17. Suitable for: 26" or 28" Bicycle

Package Includes:

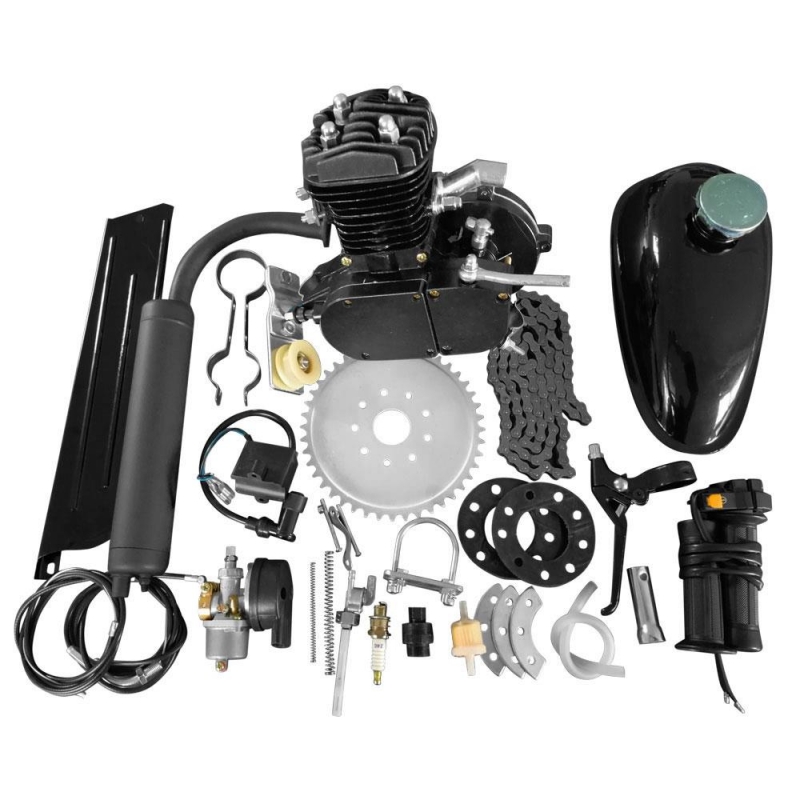

1x Full 50cc 2-Stroke Engine Motor Kit

All the needed mounting brackets, gaskets, and hardware

• Fits for most 26" or 28' wheeled bikes with V-frame. The frame should have 9-11" of clearance between the bottom bracket and top bar, and the diameter of the frame tubes should be 25-29mm (around an 1")
• Key parameters: bore and stroke 40mm x 38mm=48cm3, Max. power 1.6Kw/6000r/min (3 horsepower/6000r/min), Super fuel-efficient, only consuming 1.5L fuel/100km
• Lubrication Oil: oil for 2-stroke petrol engine (or oil for 10W/40.10W/30); Mixing Ratio of Fuel and engine Oil: 16:1 for new sets, 20: 1

Specifications

• Manufacturer Part Number Does not apply

• Color black

• Assembled Product Dimensions(L x W x H) 15.90 x 12.60 x 7.48 x Inch(es)
